Description

*** In stock ready to ship***

The USA Lab 50L Single Jacketed Glass Reactor turnkey system is the best reactor kit on the market. This kit comes with a USA Lab 50L UHC-20/40 Heater chiller that can bring your reactor down to a freezing temperature of -40°C and all the way back up to the high temperature of 200°C. This allows users to have accurate temperature control and a large range of temperature for a variety of applications. With each kit comes the MD 4C NT 2.2CFM Chemistry Diaphragm Pump, a top tier vacuum pump from Vacuubrand.

No expense has been spared with this reactor turnkey system, yet we crush the market on pricing to provide great value at a low cost. Our reactor turnkey systems are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.

Bring your lab to the next level, and get started with a USA Lab single jacketed reactor turnkey system today!

This turnkey system included the following:
1pc: USA Lab 50L Single Jacketed Reactor JR-50
1pc: USA Lab 250L -40°C to 200°C Heater Chiller UHC-50/40
1pc: USA Lab 50L -30°C Chiller DLSB-30/30
1pc: Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Pump

JR-50 SPECIFICATIONS

•Glass Material: GG-17 Borosilicate Glass

•Reaction Vessel Capacity: 50L

•Material Flask Capacity: 5L

•Fluid Jacket Capacity: 13L

•Rotary Speed: 0-450RPM

•Glass Temperature Range: -80°C to 250°C / -112°F to 482

•Power Requirements: 110V 60Hz 15A Single Phase

•Stirrer Wattage: 90W

•Vacuum Level: Under 0.098Mpa

•Dimensions: 41″L x 23″W x 90″H

•Weight: 205lbs

•Speed Regulation: Digital Step-Less

•Condenser and Feed Valve Barbs: 10MM – 3/8″

•Bottom Drain Port: 35MM – 1 3/8″

•Receiving Flask Barb: 16MM – 5/8″

•Fluid Connection: 16MM – 5/8″

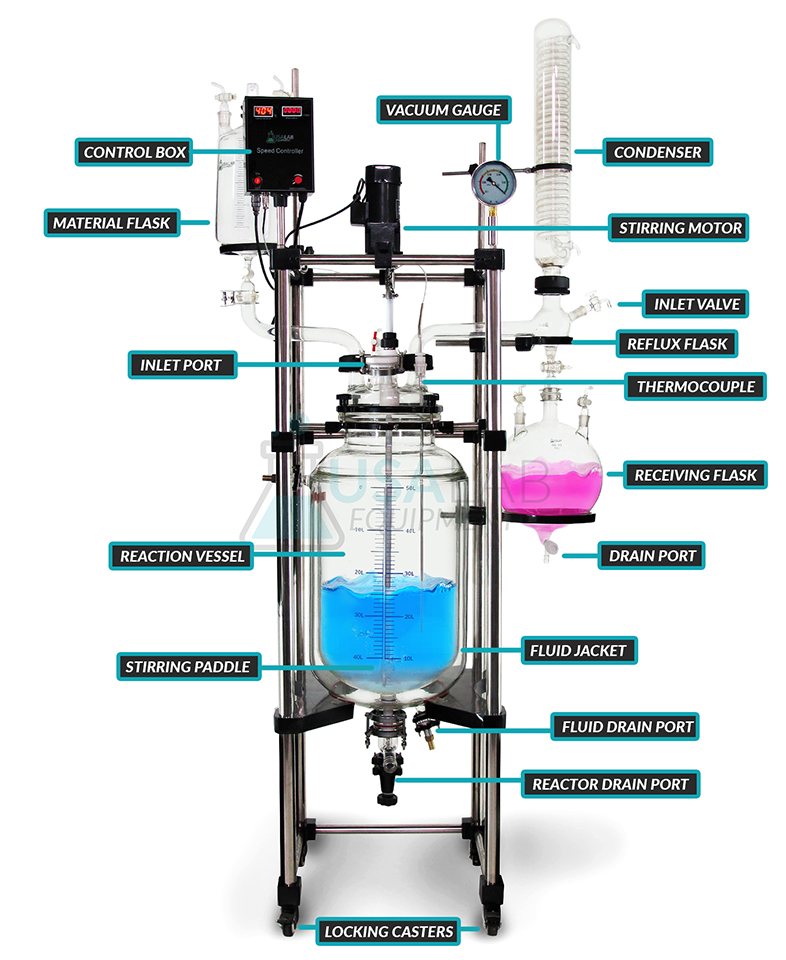

JR-50 PACKING LIST

USA Lab 50L Jacketed Reactor JR-50

1 set

Main Condenser

1 pc

5L Material Flask

1 pc

10L Receiving Flask

1 pc

Reflux Flask with Valve

1 pc

Feed Ports

6 sets

Stopper

1 pc

Clamp for Material Flask

1 pc

Strap for Condenser

1 sets

Sealing Screw / Flange

3 sets

Fluid Line Sealing Clamp / Flange

2 sets

Control Box

1 pc

Vacuum Gauge

1 pc

Support Rings

2 pcs

Stirring Motor w/ Paddle

1 set

Temperature Probe

1 pc

Liquid 5/8″ Connections

2 pcs

Metal Clamp

2 pc

3oz. Vacuum Grease

1 pc

Vacuum Hose

10 ft.



The USA Lab UHC-50/40 is a powerful -40°C to 200°C Heater Chiller with a 50L Reservoir. This heater chiller is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. These units are “Closed loop” and have a small in-feed hole allowing for the entire fluid reservoir to be closed off from the outside environment. The UHC heater chillers have easily accessible control panels for easy adjustments and repair.
The USA Lab UHC-50/40 heater chiller offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.

UHC-50/40 SPECIFICATIONS

•Reservoir Capacity: 12L

•Temperature Range: Room Temperature to -40°C to 200°C

•Power Requirements: 220V 60Hz 40A 6000W Single Phase

•Heating Wattage: 6kW        (unit needs to be hard wired)

•Refrigerating Wattage: 2kW

•Circulating Pump Wattage: 280W

•Temperature Accuracy: +/- 2°C

•Pump Flow: 35L/Min

•Pump Pressure: 4Kpa

•Connection Size: 3/4″

•Dimensions: 28″ x 26″ x 44″

•Weight: 264lbs

UHC-50/40 PACKING LIST

USA Lab UHC-50/40 Heater Chiller

1 pc

3/4″ Insulated Tubing – 6ft

2pcs

3/4″ Valve

1 pc

3/4″ NPT Hex

1 pc

PTFE Sealing Tape

1 pc
-30°C Temperatures are tested under empty load.
This unit comes with a 30 day money-back guarantee and a 1 year parts and labor warranty.

MD 4C NT

Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.

Performance features

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • whisper quiet and very low vibration
  • long diaphragm life, maintenance-free drive system

  • Technical data

    Technical data Unit MD 4C NT
    Number of heads / stages 4 / 3
    Max. pumping speed at 50/60 Hz m3/h 3.4 / 3.8
    Max. pumping speed at 50/60 Hz cfm 2.0 / 2.2
    Ultimate vacuum (abs.) mbar/torr 1.5 / 1.1
    Ultim. vac. (abs.) with gas ballast mbar/torr 3 / 2.2
    Ambient temperature range (operation) °C 10 – 40
    Ambient temperature range (storage) °C -10 – 60
    Max. back pressure (abs.) bar 1.1
    Inlet connection Hose nozzle DN 8-10 mm
    Outlet connection Hose nozzle DN 8-10 mm
    Rated motor power kW 0.25
    Rated motor speed at 50/60 Hz min-1 1500/1800
    Degree of protection IP 40
    Dimensions (L x W x H) mm 325 x 243 x 198
    Weight kg 14.3
    Noise level at 50 Hz, typ. dBA 45
    NRTL certification Canada and the USA
    ATEX conformity (only 230V) II 3/- G IIC T3 X Internal Atm. only
    Items supplied Pump completely mounted, ready for use, with manual.
    Accessories Rubber vacuum tubing DN 8 mm (20686001)



  • MD 4C NT – Pumping speed graph at 50 Hz

    MD 4C NT - Pumping speed graph at 50 Hz

    MD 4C NT – Pump down graph at 50 Hz (10 l volume)

    MD 4C NT - Pump down graph at 50 Hz (10 l volume)

  • MD 4C NT – Pumping speed graph at 60 Hz

  • MD 4C NT - Pumping speed graph at 60 Hz

  • MD 4C NT – Pump down graph at 60 Hz (10 l volume)

  • MD 4C NT - Pump down graph at 60 Hz (10 l volume)

  • -Technical data are subject to change without notice-

    MD 4C NT – Dimension sheet

    MD 4C NT - Dimension sheet

This product comes with a 1 year parts and labor warranty.

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund!  Any glassware broken after delivery voids all warranties. Thank you for understanding!

USA Lab is not responsible for glassware failure due to improperly
checked glassware before and after use. Over time glassware may develop imperfections
through usage, stress, misuse and even temperature variations. It is your responsibility
as the consumer to inspect glassware prior to and after use for any
imperfections that may have occurred. Upon inspection, if any imperfections are
noticed, do not use the glassware. Glassware with imperfections may fail and
cause harm.

1 Year parts and labor warranty included, glass is not covered under warranty.
