Description

*** In Stock***

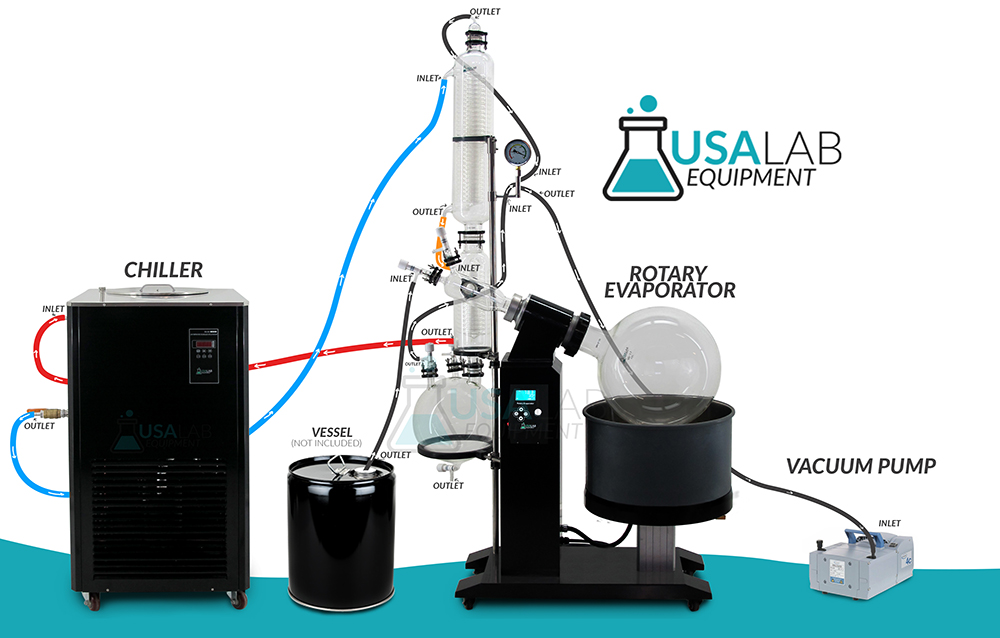

The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.
The RE-1050 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum. This kit includes a Vacuubrand MZ 2C NT 1.2CFM Diaphragm pump that is rated for 15,000 Hours of use before maintenance. This pump is made from the highest quality parts and will work great with a USA Lab 2L rotary evaporator system.
No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.




RE-1050 SPECIFICATIONS

•Glass Material: GG-17 Borosilicate Glass

•Evaporation Flask Capacity: 50L

•Collection Flask Capacity: 20L

•Rotary Speed: 20-120RPM

•Bath Temperature Range: Room Temp to 180°C /356°F

•Lifting Mechanism: Electric

•Power Requirements: 220V 60Hz 30A L6-30P Plug Installed

•Temperature Control Accuracy: +/-1°C

•Motor Wattage: 250W

•Heater BTUs: 22,000BTU

•Achievable Vacuum: 399.9Pa

•Evaporating Capability: Water≥7L/H; Alcohol≥15L/H

•Water Bath Volume: 77L

•Dimensions: 52″L x 30″W x 84″H

•Condensing Glass Volume: Main: 0.91㎡ ; Auxiliary: 0.52㎡

•Speed Regulation: Digital Step-Less

•Vacuum Barb: 13.3MM

•Condenser Barb: 15.5MM

MD 4C NT

Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.

Performance features

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • whisper quiet and very low vibration
  • long diaphragm life, maintenance-free drive system

  • Technical data

    Technical data Unit MD 4C NT
    Number of heads / stages 4 / 3
    Max. pumping speed at 50/60 Hz m3/h 3.4 / 3.8
    Max. pumping speed at 50/60 Hz cfm 2.0 / 2.2
    Ultimate vacuum (abs.) mbar/torr 1.5 / 1.1
    Ultim. vac. (abs.) with gas ballast mbar/torr 3 / 2.2
    Ambient temperature range (operation) °C 10 – 40
    Ambient temperature range (storage) °C -10 – 60
    Max. back pressure (abs.) bar 1.1
    Inlet connection Hose nozzle DN 8-10 mm
    Outlet connection Hose nozzle DN 8-10 mm
    Rated motor power kW 0.25
    Rated motor speed at 50/60 Hz min-1 1500/1800
    Degree of protection IP 40
    Dimensions (L x W x H) mm 325 x 243 x 198
    Weight kg 14.3
    Noise level at 50 Hz, typ. dBA 45
    NRTL certification Canada and the USA
    ATEX conformity (only 230V) II 3/- G IIC T3 X Internal Atm. only
    Items supplied Pump completely mounted, ready for use, with manual.
    Accessories Rubber vacuum tubing DN 8 mm (20686001)



  • MD 4C NT – Pumping speed graph at 50 Hz

    MD 4C NT - Pumping speed graph at 50 Hz

    MD 4C NT – Pump down graph at 50 Hz (10 l volume)

    MD 4C NT - Pump down graph at 50 Hz (10 l volume)

  • MD 4C NT – Pumping speed graph at 60 Hz

  • MD 4C NT - Pumping speed graph at 60 Hz

  • MD 4C NT – Pump down graph at 60 Hz (10 l volume)

  • MD 4C NT - Pump down graph at 60 Hz (10 l volume)

  • -Technical data are subject to change without notice-

    MD 4C NT – Dimension sheet

    MD 4C NT - Dimension sheet

EXTRA PACKING LIST

USA Lab Propylene Glycol

5  Gal.

3/8″ Vacuum Hose

10ft.

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days
 of receiving your product and we will either send you a brand new piece or send you a refund!
Any glassware broken after delivery voids all warranties. Thank you for understanding!
1 Year parts and labor warranty included.

For Technical Support, Questions, or Other Issues Please Email or Call Us!



USA Lab Equipment

Livonia, MI 48150
