Product Description

LAB1ST Scientific is now offering turnkey packages for wiped film molecular distillation units, including the evaporator, vacuum pump, heaters, chillers and necessary feeding/receiving equipments. The wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation. The units are available in various sizes (from 60mm diameter to 200mm or more), with processing speed starting from 250g/hour.

Read before placing order:

  • This item will be shipped via DHL/UPS Express,or air/sea transportation, which takes about 5 days from Shanghai to US by express or air transportation,30 days by sea transporation.We need about 2-3 weeks to prepare shipment.
  • There might be a small amount of customs duty tax, which will be paid by the buyer.
  • The shipping cost in this listing is valid for customers in US or West Europe. Customers in other parts of the world please contact us before placing order.

Product Features

  • Borosilicate 3.3 glass design for a perfect view on the separation process.
  • Short residence time(separation is finished in seconds, instead of hours.)
  • The very low operating pressure ensure very low distillation temperature  and therefore a very gentle distillation is possible.
  • Turkey package which is plug-and-play, technical supports available.
  • The system can be upgraded for continuous distillation process.
  • Industrial grade(>=200mm) products are available upon request.

Product Technial Datas:

ModelMD-60MD-80MD-100MD-150MD-200
Effective evaporation area (m2)0.060.10.150.240.35
Barrel diameter (mm)6080100150200
Feeding funnel volume(L)11.5225
Feed rate(g/hr)250-500500-750750-15001500-30003000-5000
Motor power (W)90120120120200
Maximum speed (rpm)0-5000-5000-5000-5000-500
Distillate receiving flask(L)11235
Recycle receiving flask(L)11235
Operation TemperatureUp to 200 ℃Up to 200 ℃Up to 200 ℃Up to 200 ℃Up to 200 ℃

Related Products Specifications:

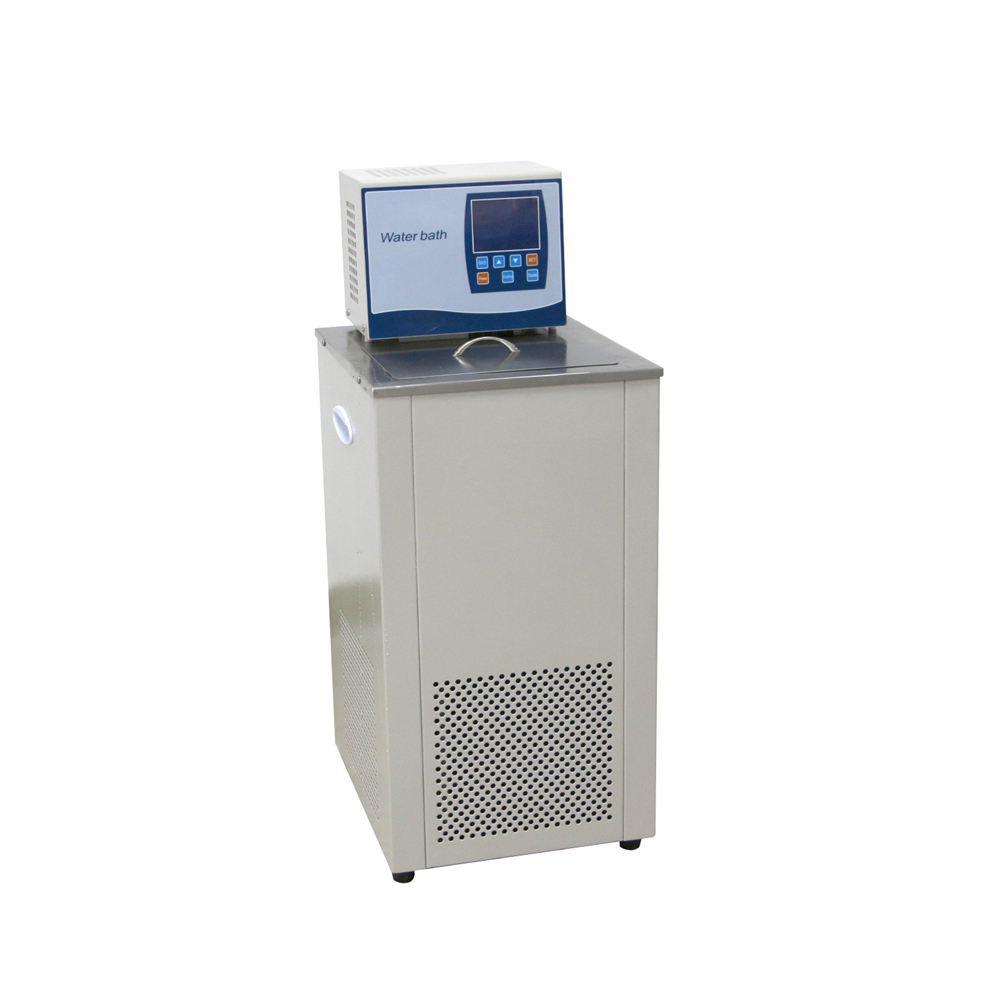

Low -temperature cooling circulator for external condenser

ModelHC-100-5
Reservoir Volume15L
Temperature Range-5~95 ℃
Temperature Accuracy± 0.1 ℃
Pump capacityMax:6 L/min
Electricity220V, Single-Phase

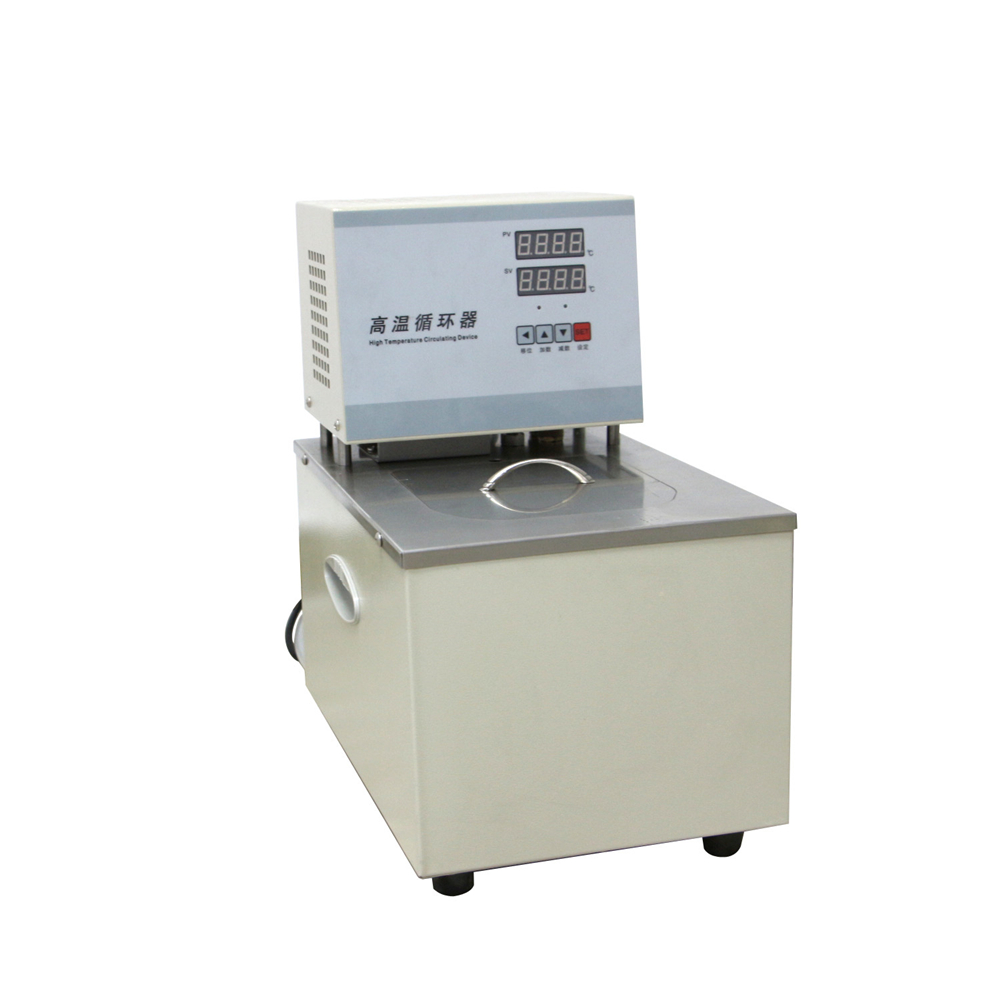

Circulating heater for feeding system
ModelGX-300-5
Bath Volume5L
Temperature Control RangeRT~300 ℃
Temperature Accuracy± 0.2 ℃
Heating Power1.6KW
Circulate Flow Rate8L/min
Running PipingStainless Steel
Electricity220V

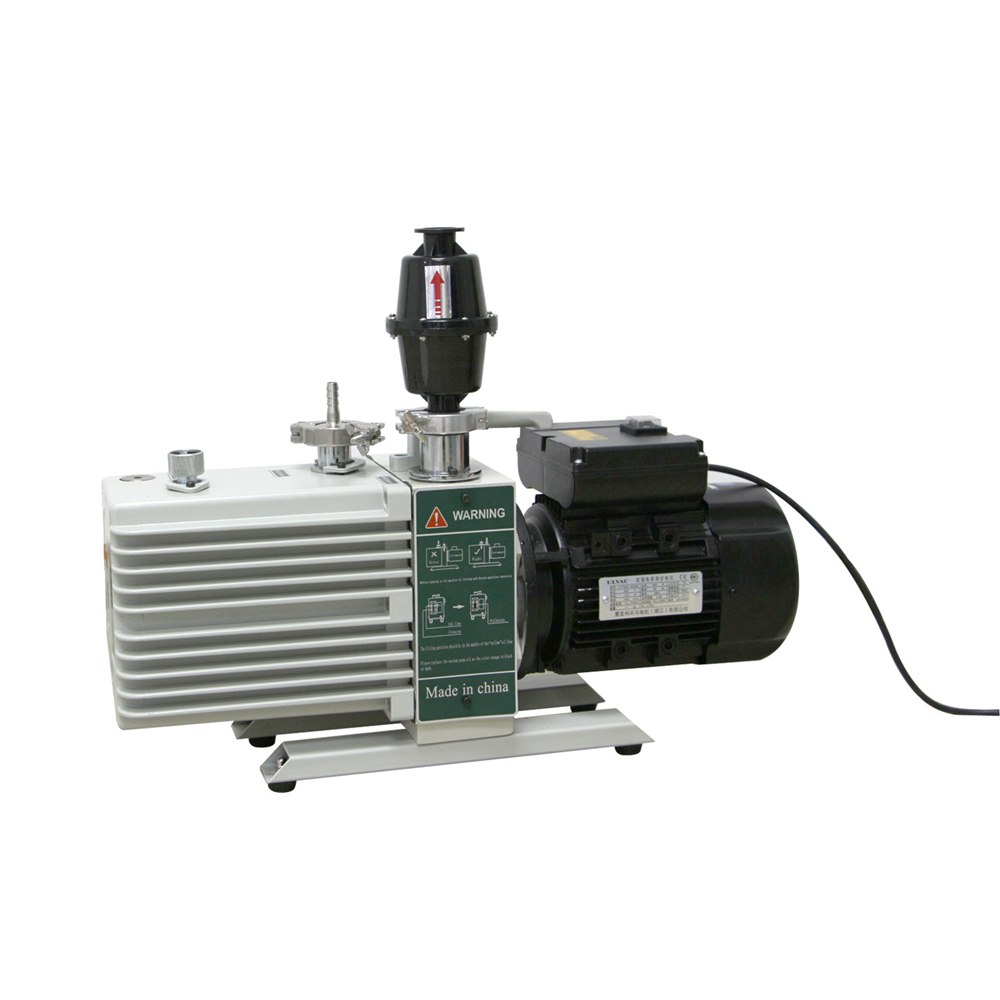

Vacuum Pump

Vacuum Pump

Model UV-9
Pump speed 9CFM
Ultimate.partial pressure≤4X10-4 mbar
Allowable pressure of vapor25mbar
Oil consumption 1.5L
Rotating speed1420r/min
Motor power 0.55kw 0.7HP
Power supply single /3-phase

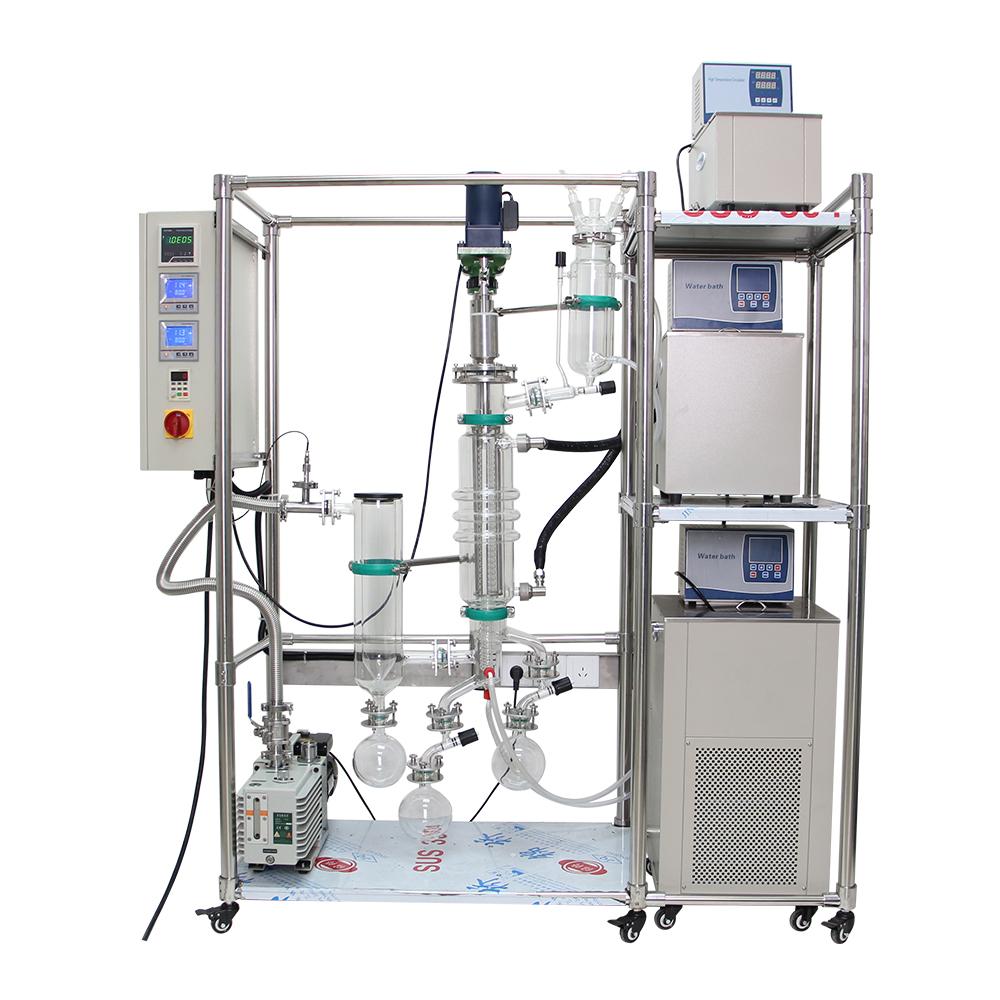

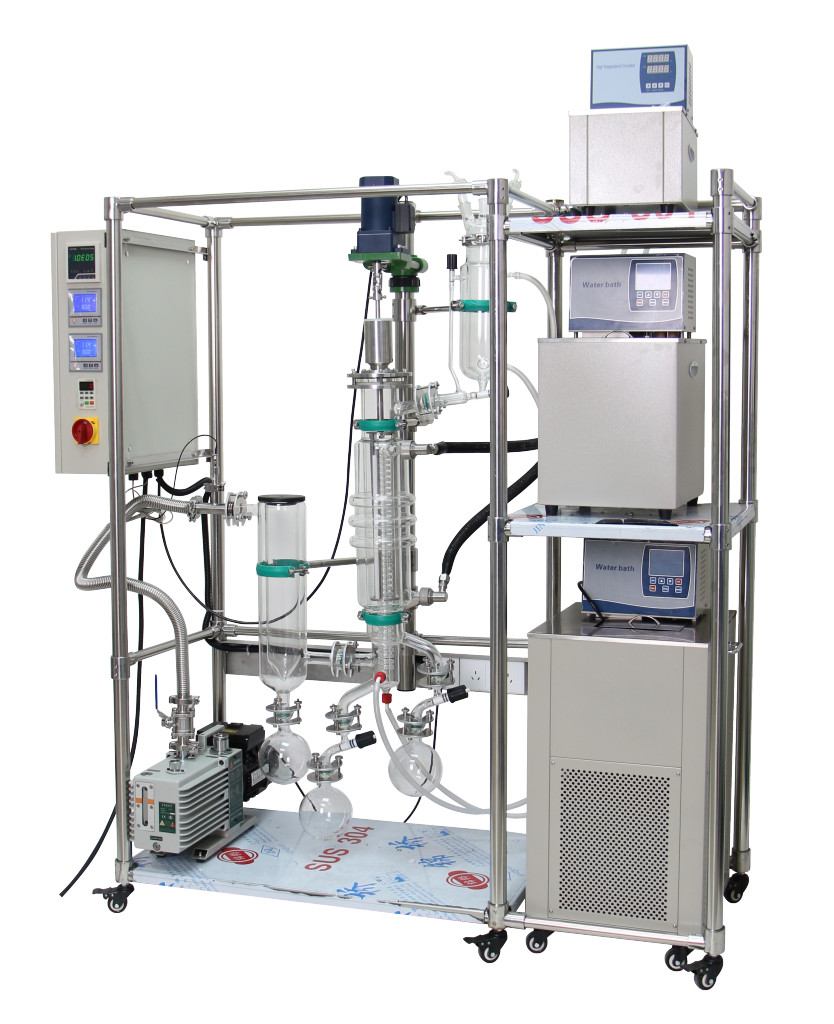

MD-80 Wiped Film Distillation SystemStandard Package

 PartsDescription Specifications

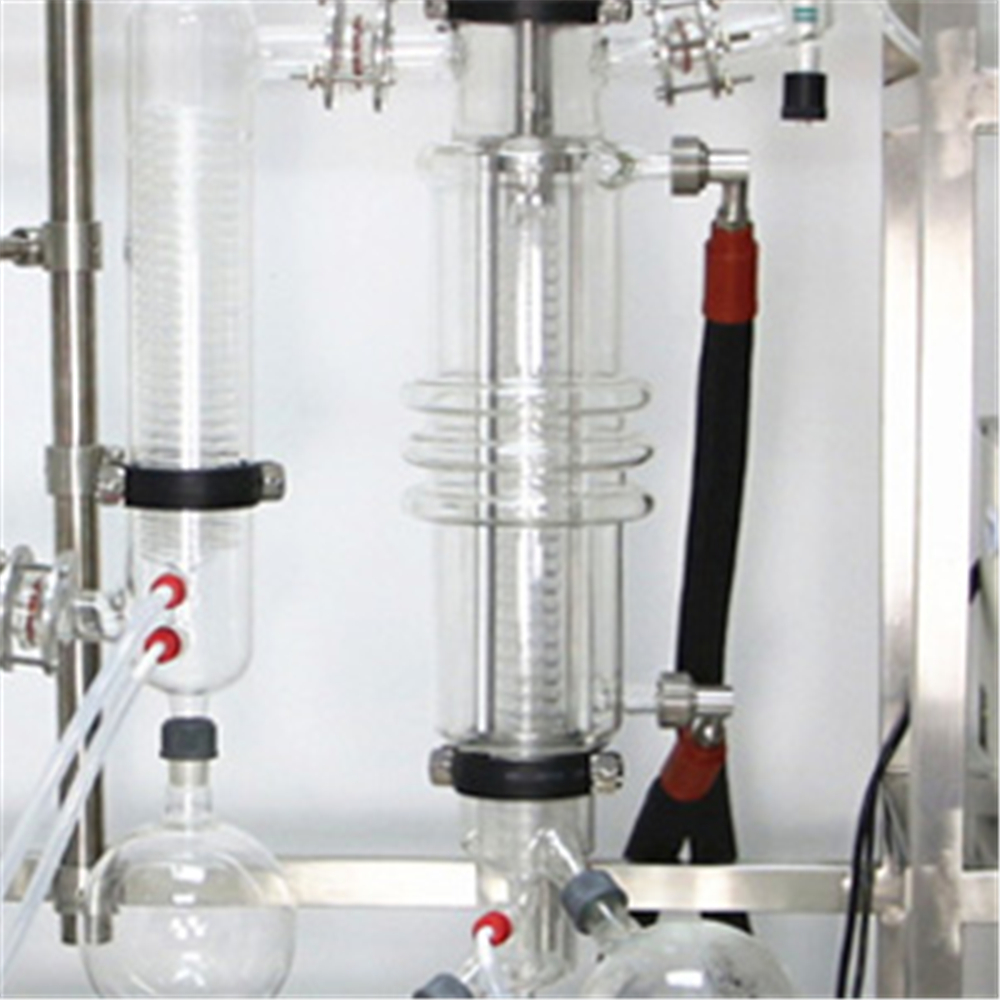

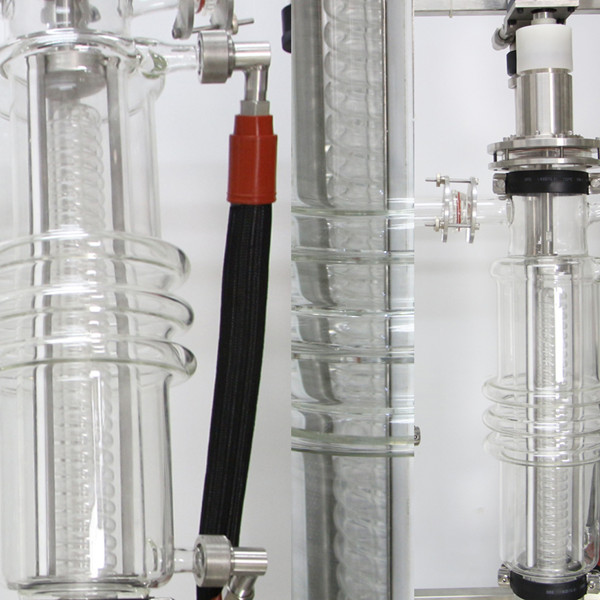

MD-80-JGBJacketed Glass Barrel with Internal Cooling CondenserDiameter: 80mm
Effective Evaporation Area: 0.1m2
Processing Rate: 500-750 gram/hour

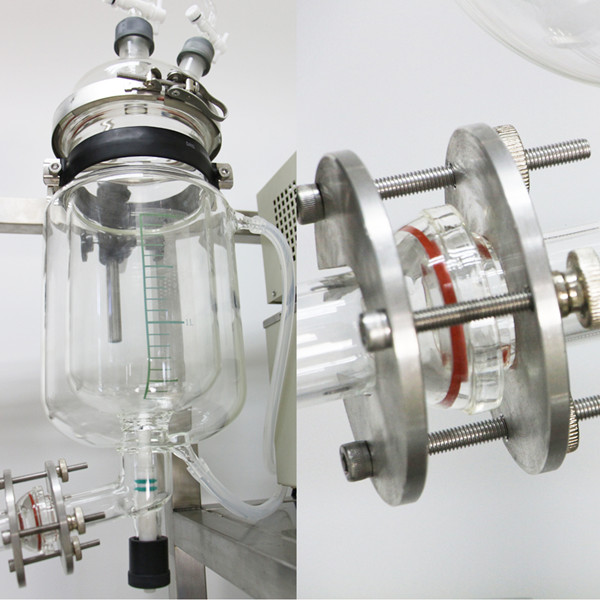

MD-80-FLJacketed Feeding Vessel with LidVolume: 1L
Number of Ports on the Lid: Three
Port Size: 24/40
Valve Material: PTFE

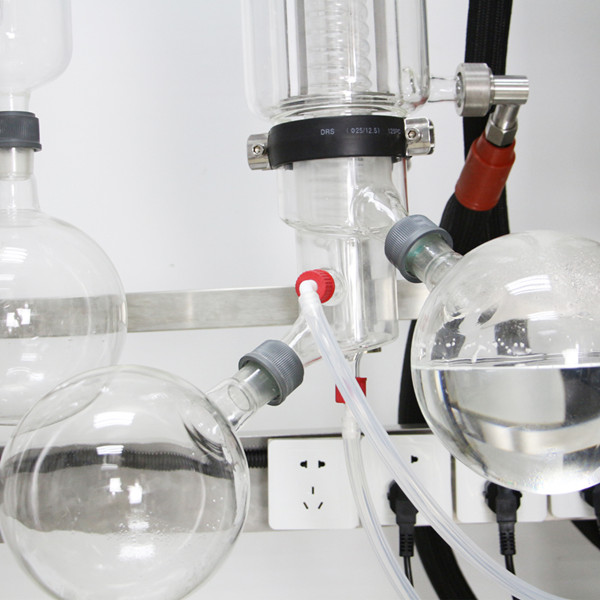

MD-80-DFDistilalte Receiving FlaskVolume: 1L
Port: Spherical Joint
MD-80-RFResidue Receiving FlaskVolume: 1L
Port: Spherical Joint

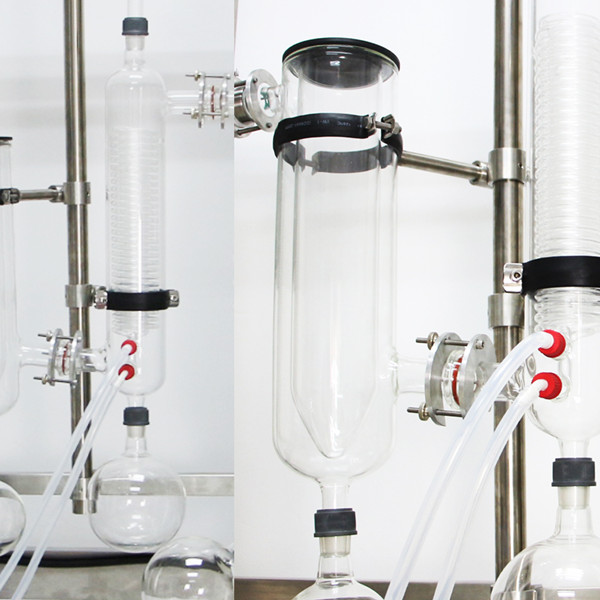

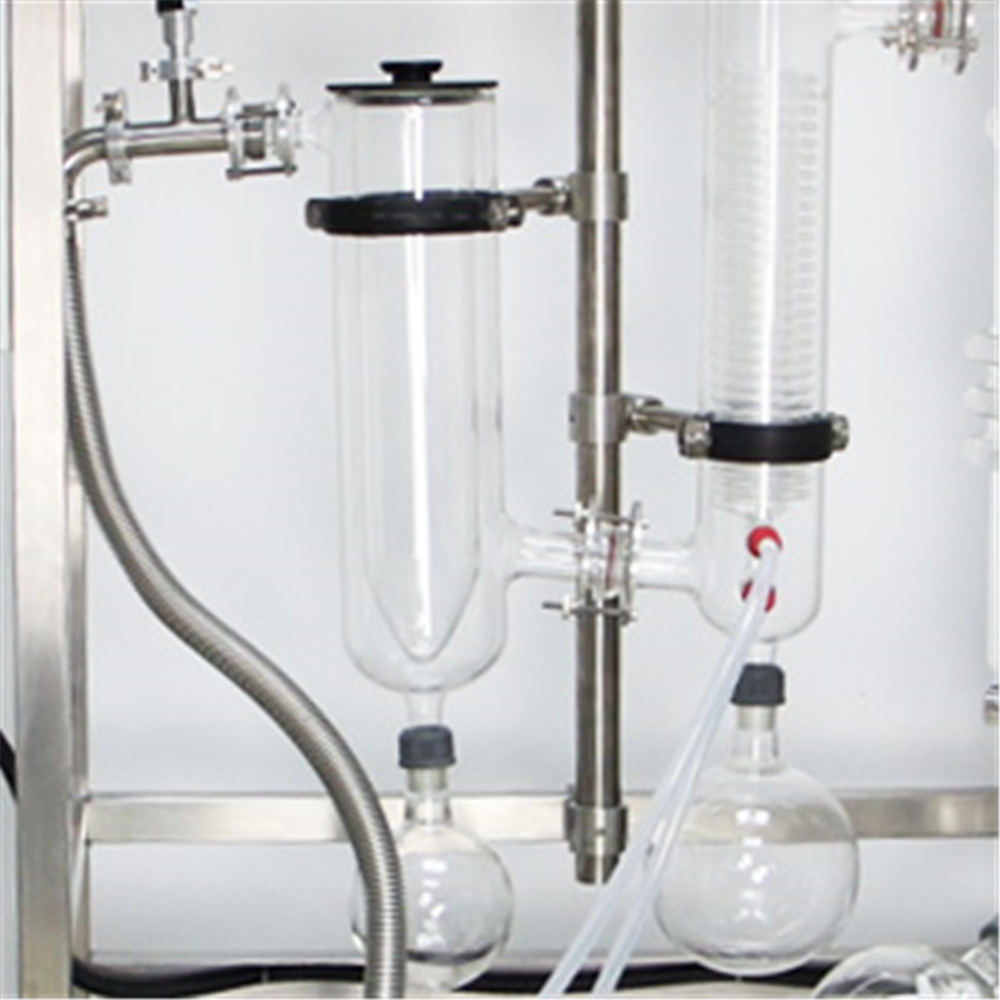

MD-80-CTCold TrapCold Trap with 1L Collection Flask
WiperWiperMaterial: Stainless Steel 316L
Blade Material: PTFE

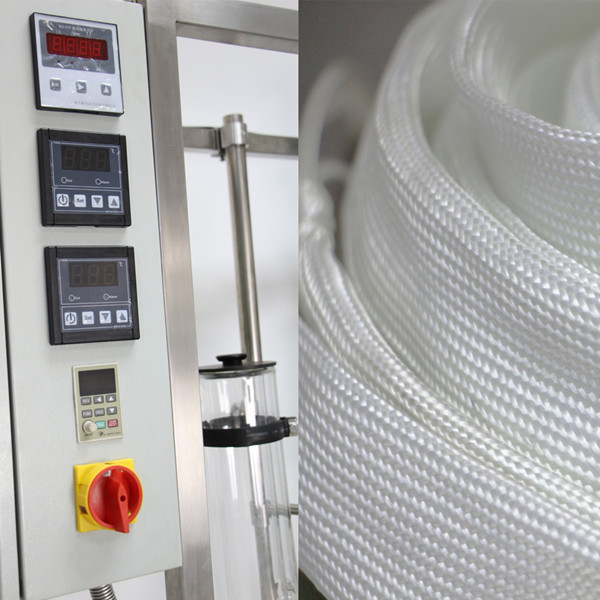

Control SystemControl SystemDigital High Vacuum Gauge (0.01pa-1atm), Pirani Type
VFD Speed Controller for Stirring Motor, Motor Power:120W
Two Temperature Controllers for Heating Tapes
Electricity: 220V, single-phase, 1 kW total

Support FrameSupport FrameMaterial: Stainless Steel 304

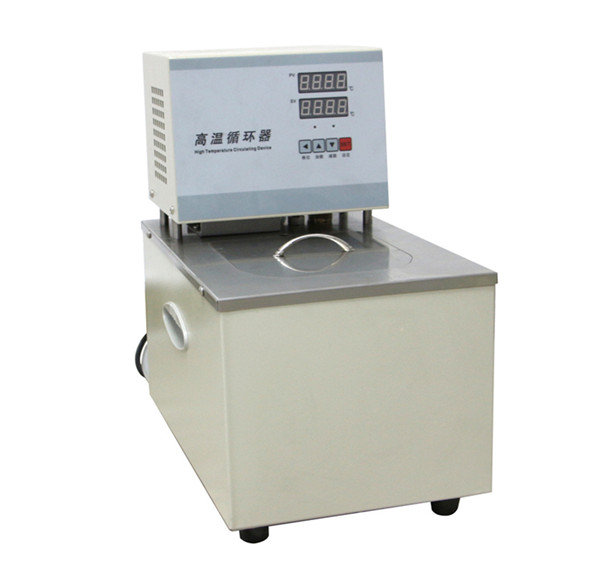

GX-300-5Heating Circulator for Feeding VesselReservoir Volume: 5L
Temperature Range: RT-300℃
Pump Rate: 8L/min
Heating power: 1.6kW
Electricity: 220V
GX-300-10Heating Circulator for Jacketed Glass BarrelReservoir Volume: 10L
Temperature Range: RT-300℃
Pump Rate: 15L/min
Heating power: 2.1kW
Electricity: 220V
HC-100-5Heating/cooling Circulator for Internal CondenserReservoir Volume: 5L
Temperature Range: RT-100℃
Pump Rate: 15L/min
Heating Power: 1 kW
Compressor Power: 500 W
Power: 1.8kW
Electricity: 220V, single-phase
UV-9
UltraVac Series
Vacuum PumpPump Rate: 9CFM
Oil Consumption:1.5L
Ultimate Partial Pressure: <4×10-4mbar
Rotating Speed: 1420r/min
Motor Power: 0.55kW, 0.7HP
Electricity: 220V, single or three phase
AccessoriesAccessoriesVacuum Tubes, Heating/Chilling Hoses, etc
